Brief description of the product:
The MJ-HD3200PRO is a "flagship behemoth" specifically designed for ultra-large format outdoor advertising municipal engineering and stretch ceiling markets. Combining an impressive 3.2-meter ultra-wide format with a maximum of 24 industrial print heads it represents top-tier productivity in the UV printing field.
Core features of the product:

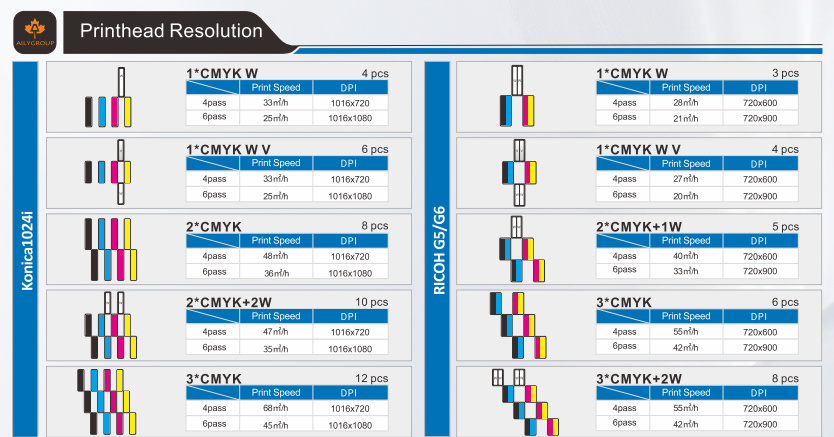

- 3-24pcs Ricoh Gen5/Gen6/Konica 1024i/Konica 1024A
- Advanced domestic BYHX control system
- Maintenance-free negative ink supply system
- Independent constant temperature heating control
Detail images and application images:

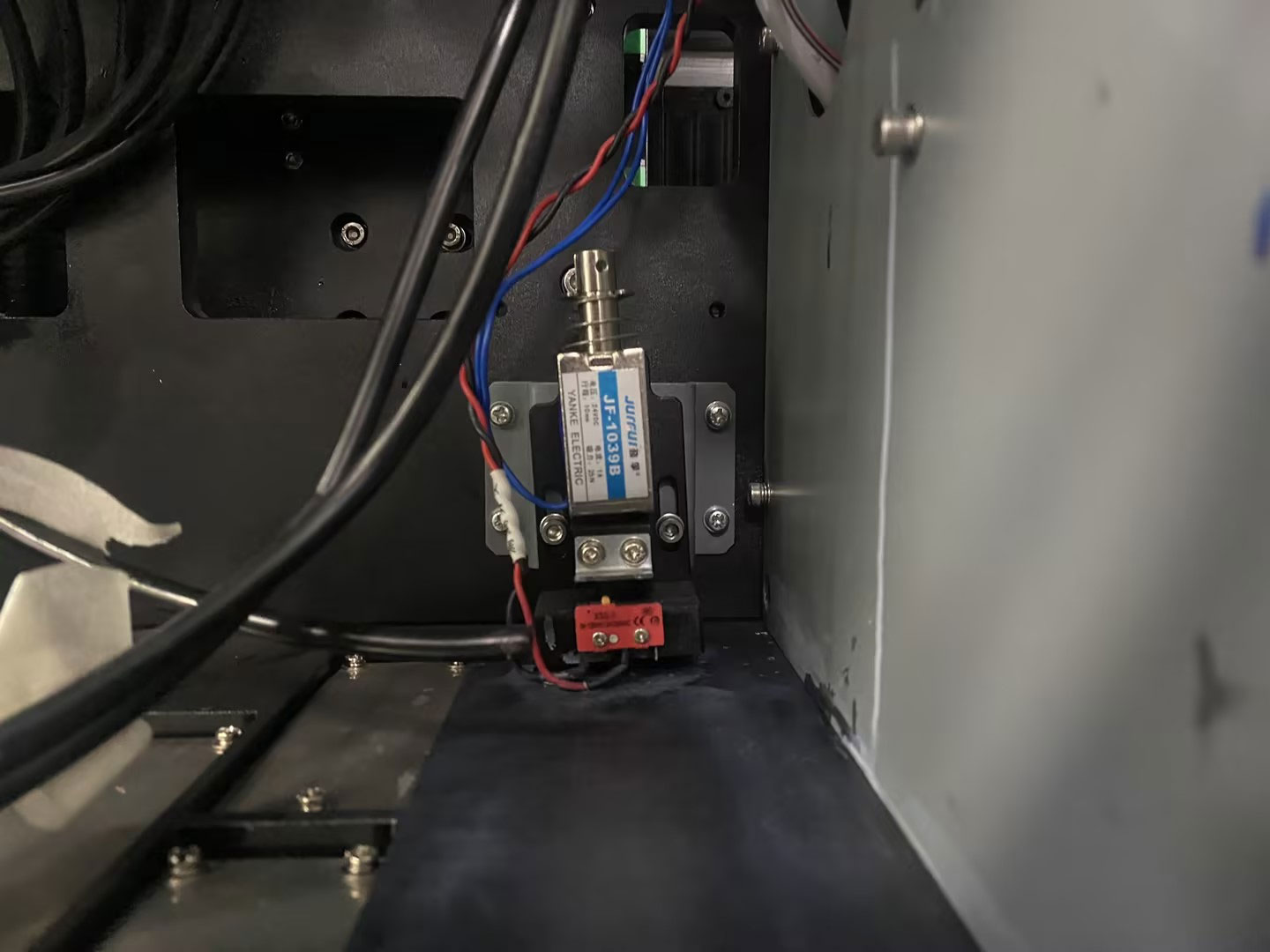

Auto Anti-Collision System To avoid Damage
High-sensitivity automatic anti-collision device. Prevents hard collisions between the print head and the media.
Independent Constant Temperature Heating
It improves curing performance and color reproduction eliminating problems such as ink buildup dripping and incomplete drying caused by low temperatures and significantly reducing scrap costs.

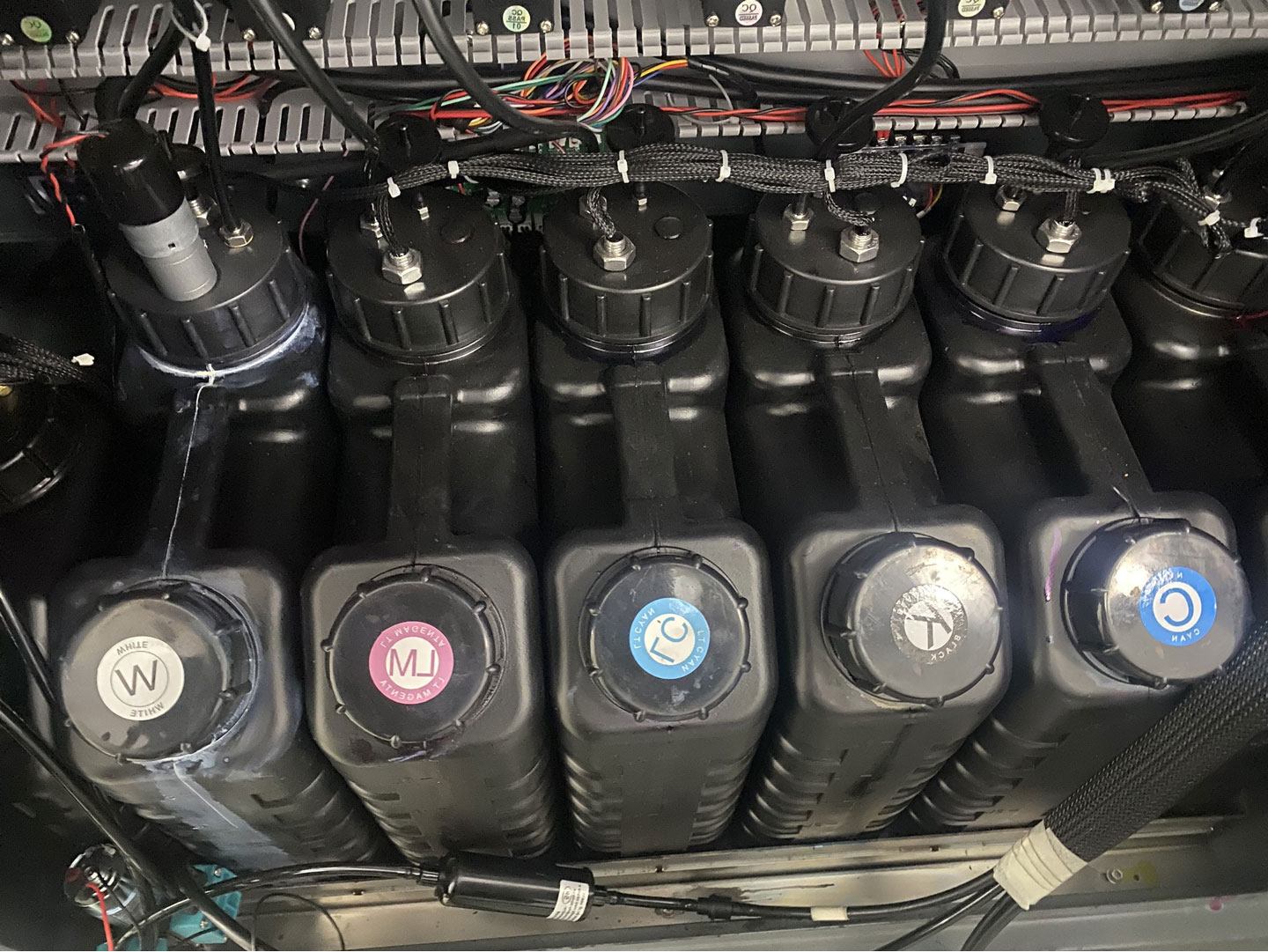

Maintenance-free Negative Ink Supply System
Reduce the common blockage and ink leakage problems of traditional ink supply systems and reduce the frequency of after-sales maintenance.
Printing Material Automatic Height Detection Device
The sensor automatically scans the surface of the material accurately measures the distance between the print head and the material and automatically adjusts the print head height to the optimal position without requiring manual intervention.

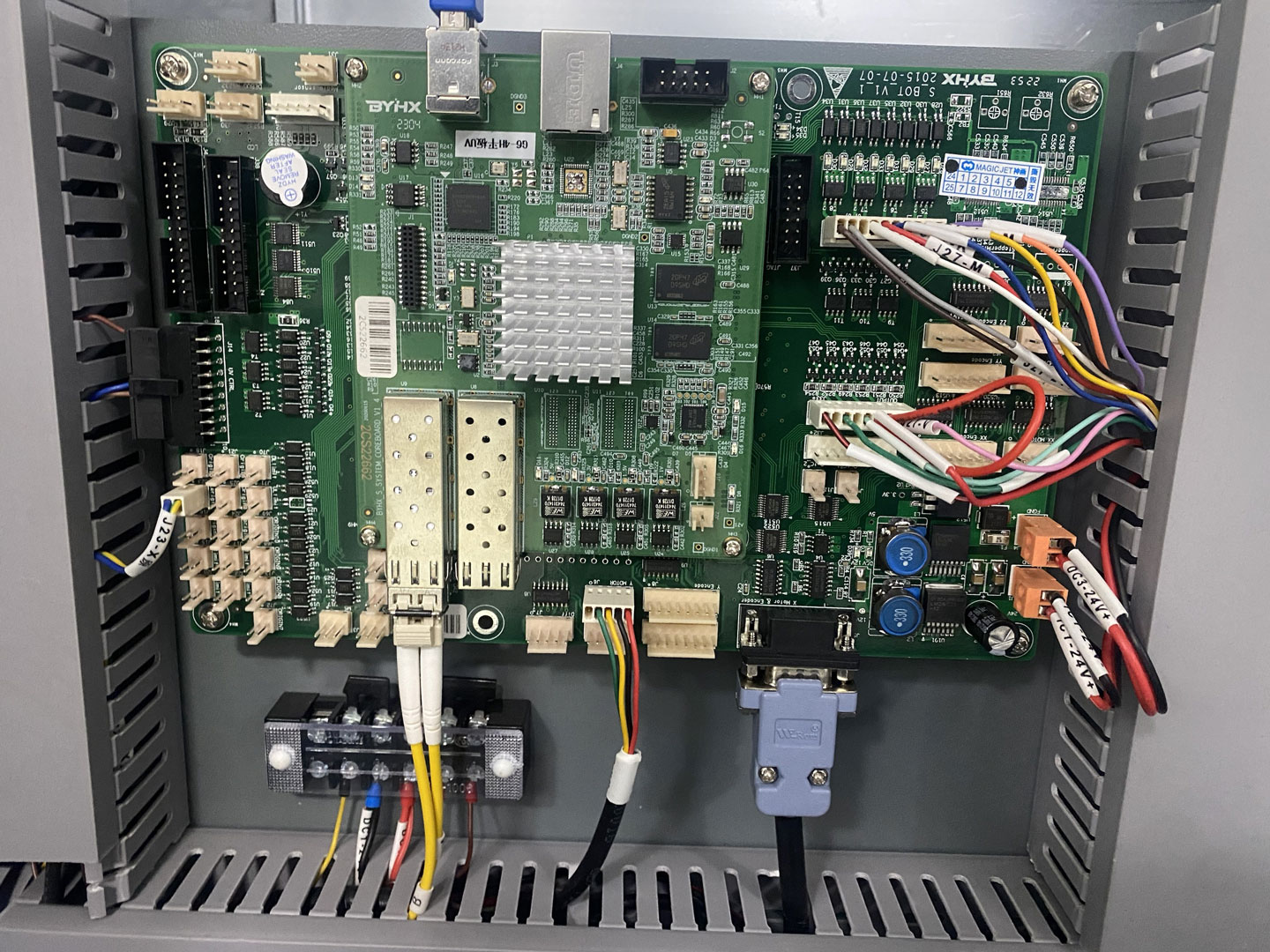

Advanced domestic BYHX control system
The BYHX system is renowned for its powerful data processing capabilities and exceptional stability essentially equipping this industrial printer with a robust "domestically produced heart" ensuring that the machine remains precise and stable even at high operating speeds.
| Print Software | Caldera/Phototprint |
| Print Modes | Max 4 rows match all production need |
| Machine Functions | Movable folder platform, Lack ink alarm, Anti-collision device, Independent Ink heating control, Negative ink supply, Print height sensor |
| Printing Heads | 3-24pcs Ricoh Gen5/Gen6/Konica 1024i/Konica 1024A |
| Machine Configurations | THK Guiderail, Leadshine Motor, BYHX Board, Germany imported tank chain, All-In-One Computer(optional) |
| All-In-One Computer Configurations | 8th Generation i7-8750H Processor, 64G/128G, 15.6-inch 1920x1080 Touch Screen |
| Print Colors | CMYK W / Fluorescent Colors |
| Working Environment | 5000W Electricity Power, 25°C-30°C, humidity 50%-70% |
| Package Info | 5560*1500*1780mm, 3000KG |
