Brief description of the product:
The MJ-HD3300F boasts extreme modular expandability and industrial-grade production capacity. From entry-level to super industrial flagship this machine can be freely configured with different numbers and brands of printheads like "building blocks" according to the customer's budget and needs. It supports up to 28 printheads a truly astonishing number in the wide-format printing field meaning it's not just a printer but an industrial-grade production line.
Core features of the product:
- 3300mm Ultra-wide Printing Width
- 1-28 pcs Ricoh Gen5/Gen6/Konica 1024i/Konica 1024A
- Advanced Magnetic Levitation Transmission Is Standard
- 4 Separated Suction Area to Ensure Continous Printing Job
Detail images and application images:

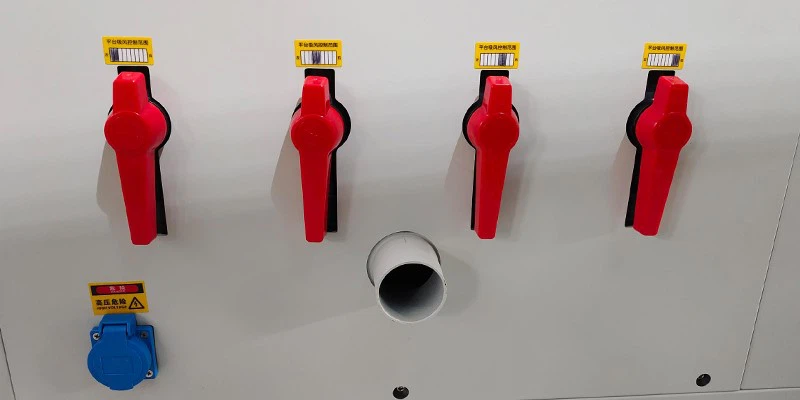

4 Separated Suction Area to Ensure Continous Printing Job
Different areas can be turned on/off separately suitable for small-sized or special-shaped materials reducing energy consumption.

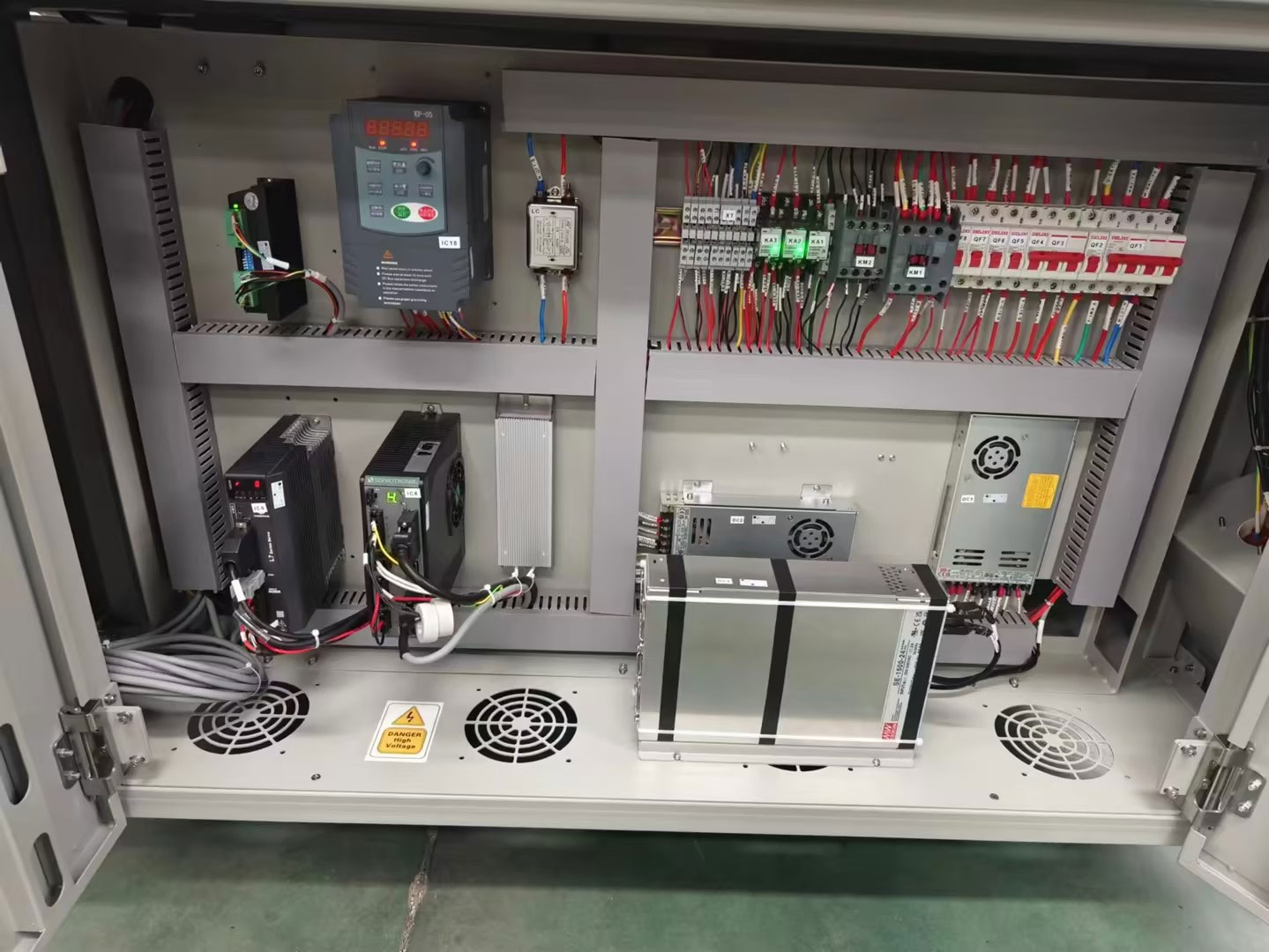

1500w Advanced Leadshine Stable Power Servo Motor
The Leadshine 1500W servo motor is designed for heavy-duty industrial applications featuring high temperature resistance and strong overload capacity.

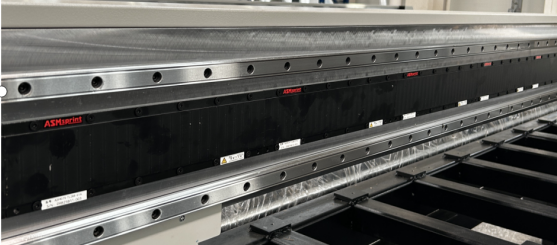

Advanced Magnetic Levitation Transmission Is Standard
The magnetic levitation system uses a grating ruler to provide real-time position feedback resulting in extremely high closed-loop control accuracy. This eliminates the "backlash error" or "vibration artifacts" associated with traditional mechanical transmissions ensuring sharp and clear images.
Integrated Anti-Static device To improve Machine Stability
This reduces printhead clogging caused by dust and circuit malfunctions caused by static electricity making the machine more robust and durable.

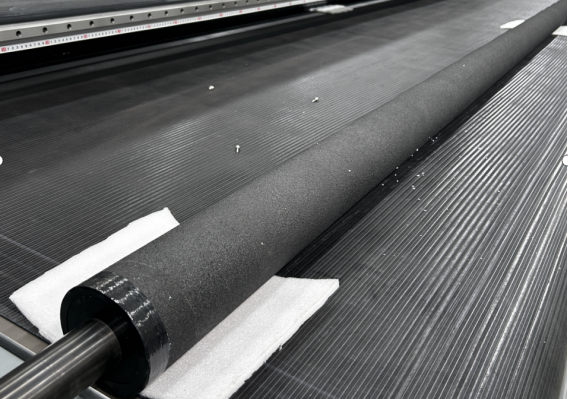

Special Design To prevent Material from Wrinkling
Whether it's thick heavy black fabric thin self-adhesive material or even easily curled PP paper the machine can handle it perfectly without requiring any manual smoothing.
| Print Software | Caldera/Phototprint |
| Print Modes | Max 4 rows match all production need |
| Machine Functions | Movable folder platform, Lack ink alarm, Anti-collision device, Independent Ink heating control, Negative ink supply, Print height sensor, 4 Separated Suction Area |

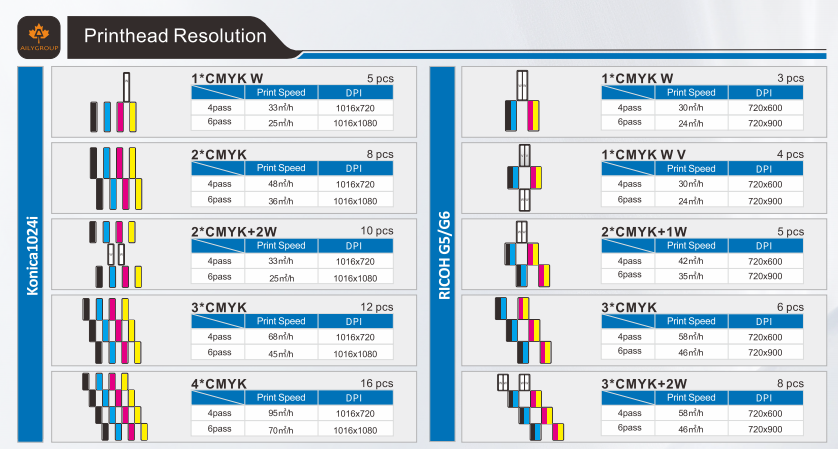

| Printing Heads | 1-28pcs Ricoh Gen5/Gen6/Konica 1024i/Konica 1024A |
| Machine Configurations | THK Guiderail, Leadshine Motor, BYHX Board, Germany imported tank chain, All-In-One Computer(optional) |
| All-In-One Computer Configurations | 8th Generation i7-8750H Processor, 64G/128G, 15.6-inch 1920x1080 Touch Screen |
| Print Colors | CMYK LC LM W V |
| Working Environment | 6000W Electricity Power, 25°C-30°C, humidity 50%-70% |
| Package Info | 5830*2470*2200mm, 4800KG |
