MJ-HD6600Pro
6.6m UV Hybrid Printer
MJ-HD6600PRO.pdf

Brief Description Of The Product:

yle="box-sizing: border-box; margin: 0 0 16px; padding: 0; font-weight: bolder; color: #787878; font-family: Lato 'Open Sans' Roboto Poppins Oswald 'Noto Sans' Montserrat arial sans-serif; font-size: 16px;"> Brief description of the product:

yle="margin: 0 0 16px; padding: 0;"> The MJ-HD6600PRO is an industrial workhorse designed for high productivity. It solves the problem of stitching with its ultra-wide 6.6-meter printing width and addresses speed limitations with a configuration of up to 40 print heads. It also offers two top-tier print head options Ricoh and Konica to meet the diverse needs of customers regarding print quality and durability.

yle="box-sizing: border-box; margin: 0 0 16px; padding: 0; font-weight: 700; color: #787878; font-family: Lato 'Open Sans' Roboto Poppins Oswald 'Noto Sans' Montserrat arial sans-serif; font-size: 16px;"> Core features of the product:

    yle="margin: 0 0 16px; padding-left: 20px;">
  • 8-40pcs Ricoh Gen5/Gen6/Konica 1024i/Konica 1024A
  • 6600mm Ultra-Wide Printing Width
  • Support Max 40 Or More OEM Konica Printheads With Higher Speed
  • Integrated Big Functional machine Control Centre For High-Efficiency

yle="box-sizing: border-box; margin: 0 0 16px; padding: 0; font-weight: 700; color: #787878; font-family: Lato 'Open Sans' Roboto Poppins Oswald 'Noto Sans' Montserrat arial sans-serif; font-size: 16px;"> Detail images and application images:

yle type="text/css"> .pd-xqts div{ margin-bottom: 20px; } .pd-xqts img{ width: 100%!important; height: 300px!important; object-fit: cover; }yle>
MJ-HD6600PRO Product Image 1

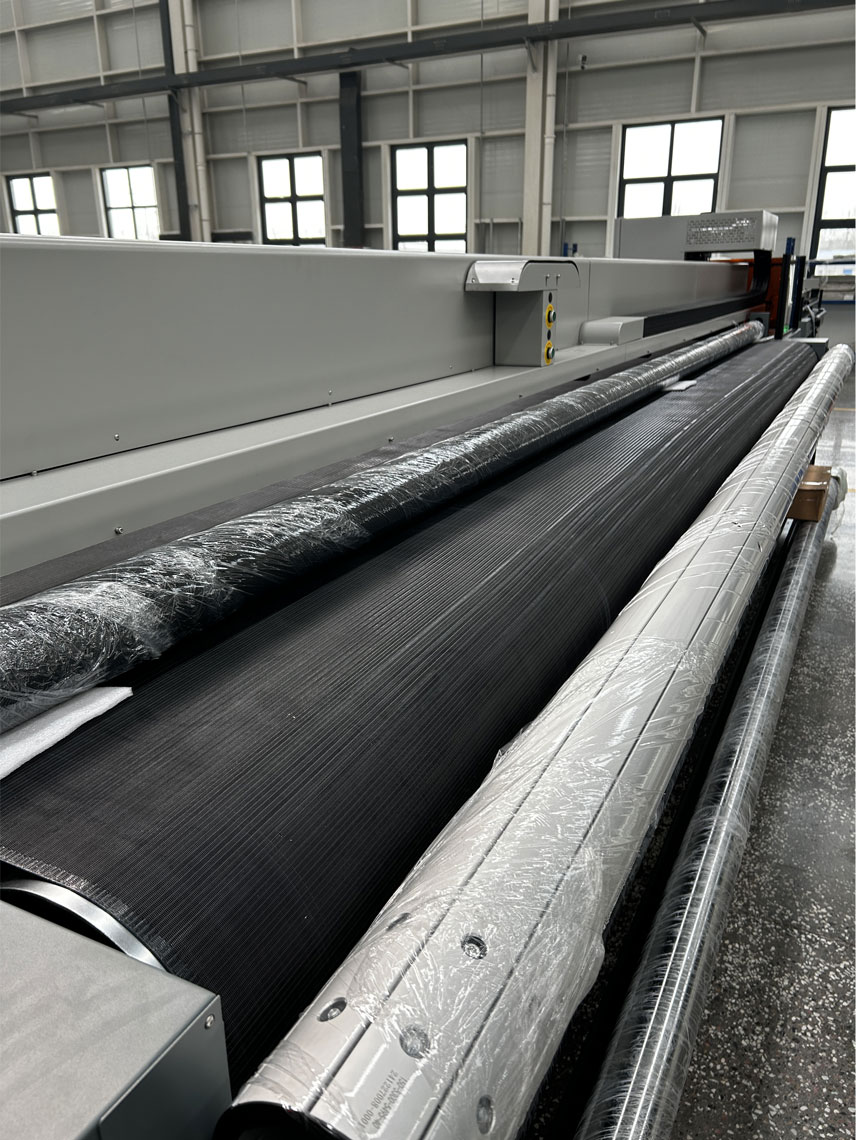

yle="margin-top:8px;"> Adapt To Different Diameter material By Adjusting Air pressure Inside Rollers
The air-expanding shaft or pneumatic roller system of the 5.2-meter UV hybrid printer can securely grip rolled materials of various sizes.
MJ-HD6600PRO Product Image 2

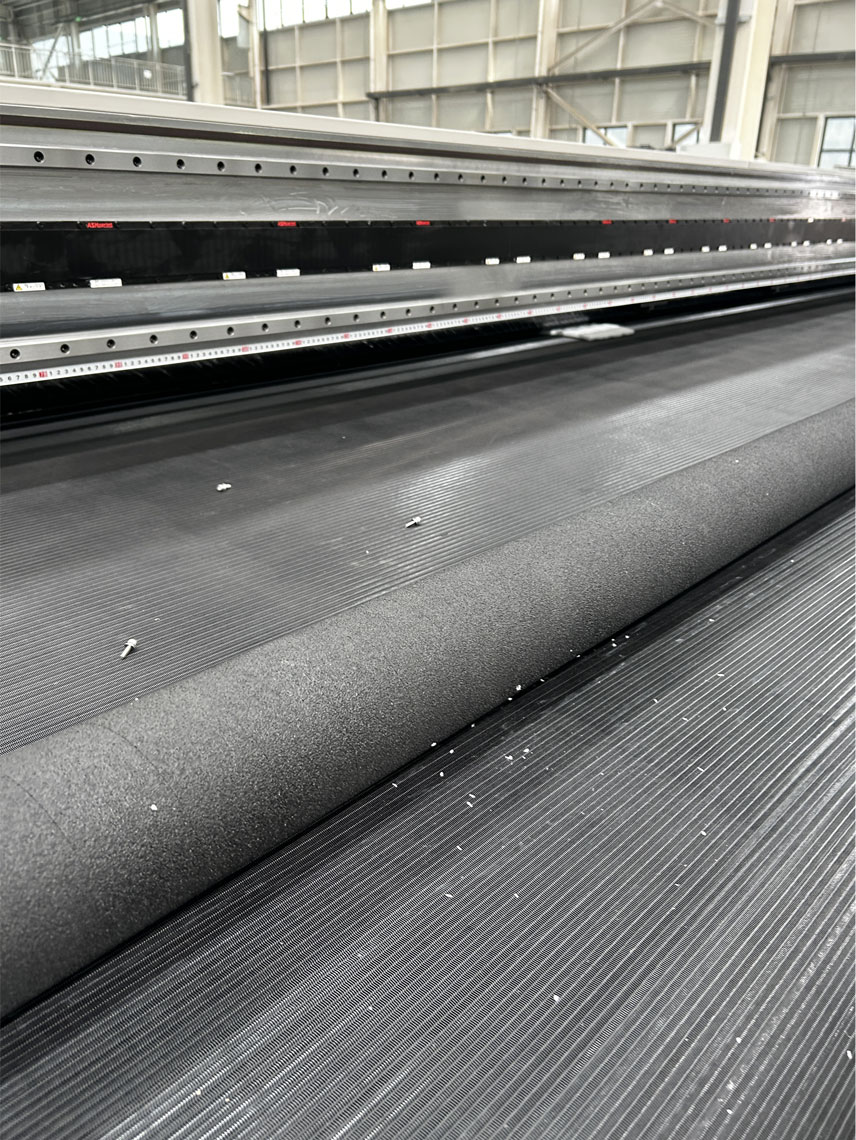

yle="margin-top:8px;"> Branded Accessories used For High attrition Areas
The carriage (Y-axis) is very heavy and moves back and forth at a very high frequency. The guide rails and sliders are considered "high-wear areas" and using components from well-known brands ensures the machine's stability durability and printing accuracy under long-term high-intensity operation.
MJ-HD6600PRO Product Image 3

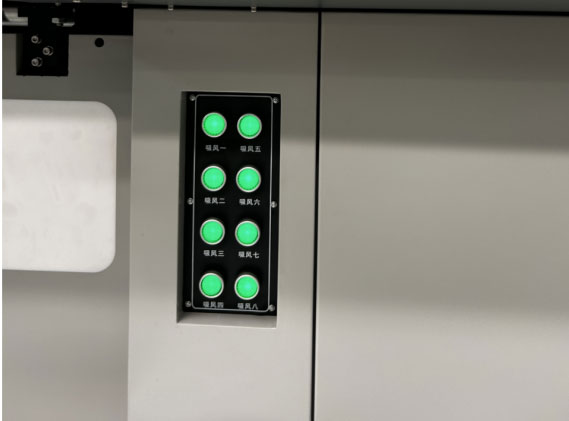

yle="margin-top:8px;"> Integrated Big Functional machine Control Centre For High-Efficiency
It makes operations simpler smarter and faster ensuring that users can achieve highly efficient and rewarding production.
MJ-HD6600PRO Product Image 4

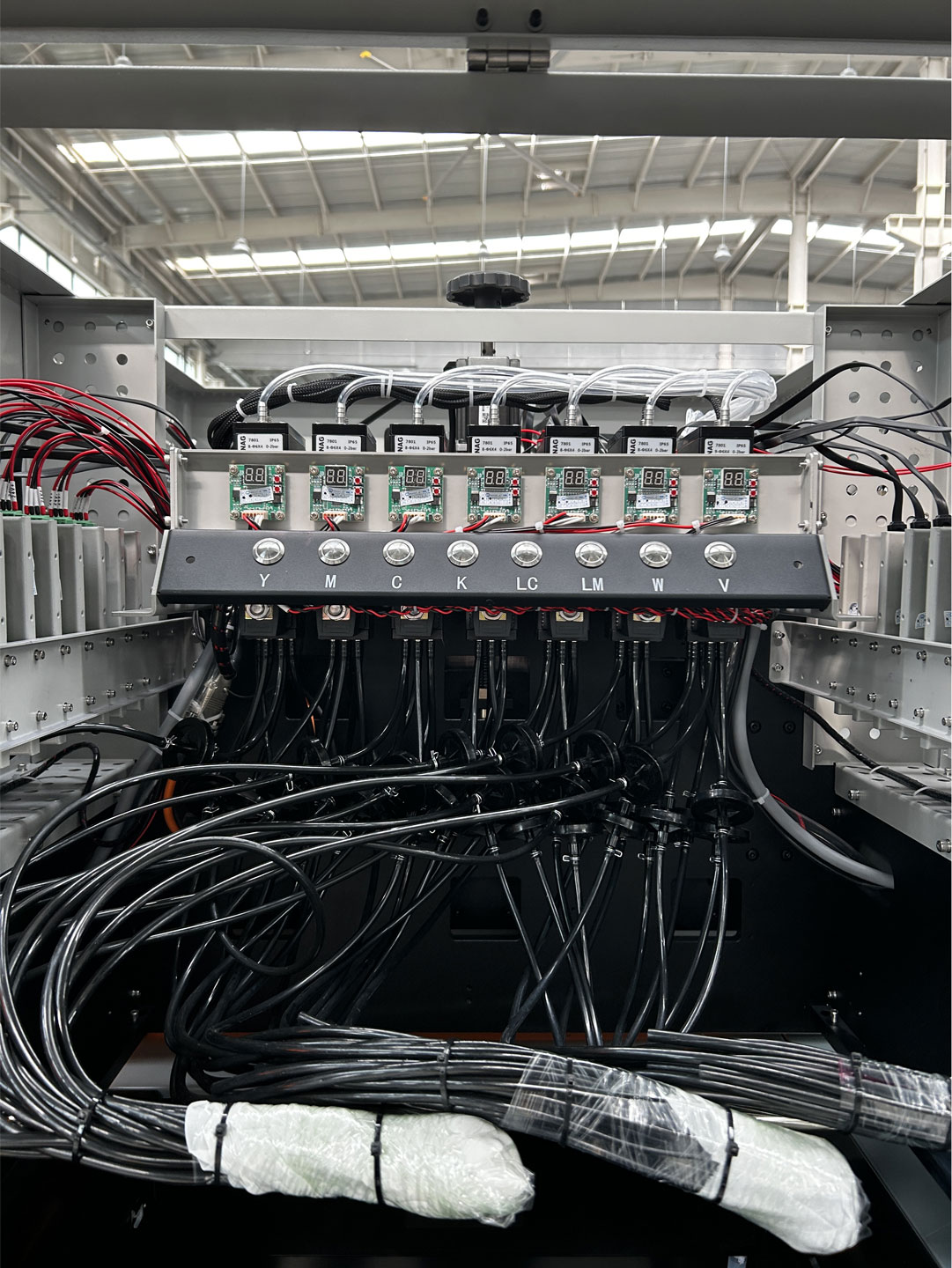

yle="margin-top:8px;"> Rigorous Ink Filtration Design effectively Avoid impurities From Going Into The ink Supply System
The rigorous ink filtration design effectively prevents impurities from entering the ink supply system. This protects the printer's most expensive component—the printhead—and ensures consistently stable print quality.
MJ-HD6600PRO Product Image 5

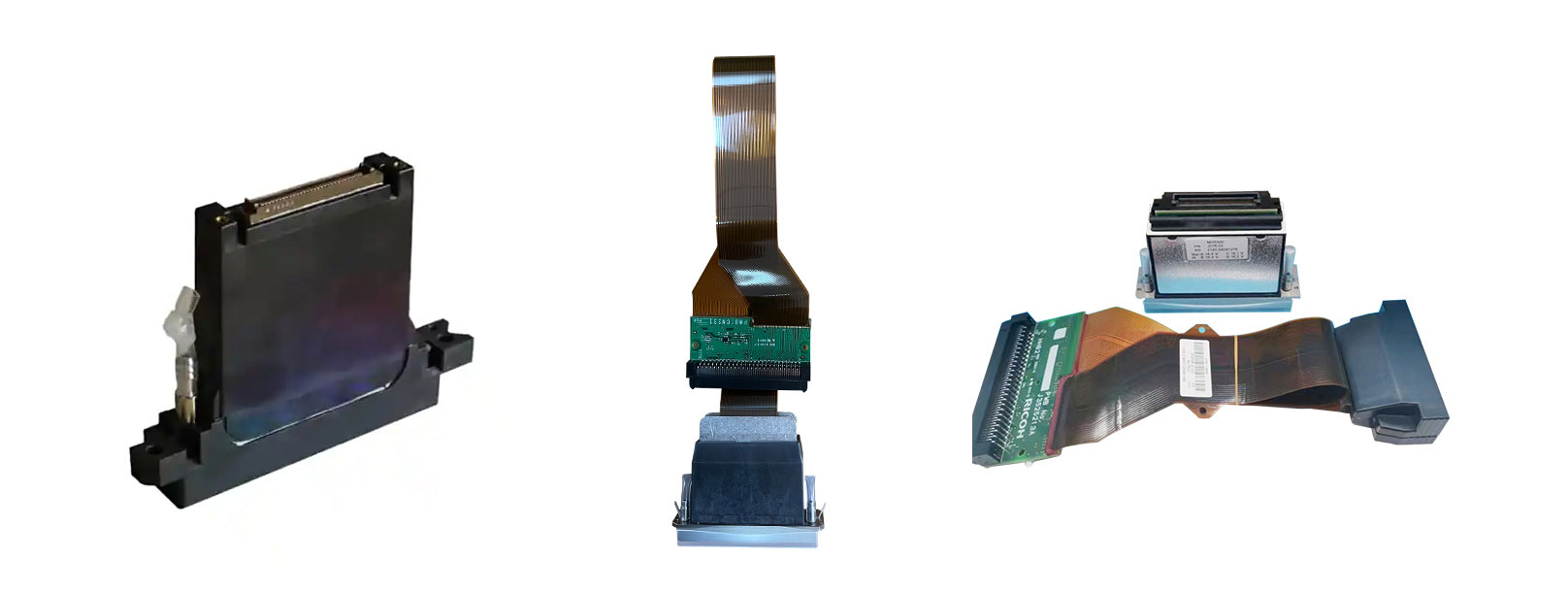

yle="margin-top:8px;"> Support Max 40 Or More OEM Konica Printheads With Higher Speed
By stacking a large number of industrial-grade print heads the 5.2-meter printer pushes production capacity to its limits. It is specifically designed for industrial printing factories that demand ultimate efficiency and handle massive orders.
yle="width: 100%; border-collapse: collapse; margin: 16px 0; font-family: Lato 'Open Sans' Roboto Poppins Oswald 'Noto Sans' Montserrat arial sans-serif; border: 1px solid #ddd;"> yle="border-bottom: 1px solid #eee;"> yle="border-bottom: 1px solid #eee;"> yle="border-bottom: 1px solid #eee;"> yle="border-bottom: 1px solid #eee;"> yle="border-bottom: 1px solid #eee;"> yle="border-bottom: 1px solid #eee;"> yle="border-bottom: 1px solid #eee;"> yle="border-bottom: 1px solid #eee;">
yle="width:35%; padding:12px 8px; font-weight:bold; color:#333; border-right:1px solid #eee;"> Print Software yle="width:65%; padding:12px 8px; color:#666;"> Caldera/Phototprint
yle="width:35%; padding:12px 8px; font-weight:bold; color:#333; border-right:1px solid #eee;"> Print Modes yle="width:65%; padding:12px 8px; color:#666;"> Max 6 rows match all production need
yle="width:35%; padding:12px 8px; font-weight:bold; color:#333; border-right:1px solid #eee;"> Machine Functions yle="width:65%; padding:12px 8px; color:#666;"> Movable folder platform Lack ink alarm Anti-collision device Independent Ink heating control Negative ink supply Print height sensor
yle="width:35%; padding:12px 8px; font-weight:bold; color:#333; border-right:1px solid #eee;"> Printing Heads yle="width:65%; padding:12px 8px; color:#666;"> 8-40pcs Ricoh Gen5/Gen6/Konica 1024i/Konica 1024A
yle="width:35%; padding:12px 8px; font-weight:bold; color:#333; border-right:1px solid #eee;"> Machine Configurations yle="width:65%; padding:12px 8px; color:#666;"> THK Guiderail Leadshine Motor BYHX Board Germany imported tank chain All-In-One Computer(optional)
yle="width:35%; padding:12px 8px; font-weight:bold; color:#333; border-right:1px solid #eee;"> All-In-One Computer Configurations yle="width:65%; padding:12px 8px; color:#666;"> 8th Generation i7-8750H Processor 64G/128G 15.6-inch 1920x1080 Touch Screen
yle="width:35%; padding:12px 8px; font-weight:bold; color:#333; border-right:1px solid #eee;"> Print Colors yle="width:65%; padding:12px 8px; color:#666;"> CMYK LC LM W V
yle="width:35%; padding:12px 8px; font-weight:bold; color:#333; border-right:1px solid #eee;"> Working Environment yle="width:65%; padding:12px 8px; color:#666;"> 6000W Electricity Power 20°C-28°C humidity 40%-70%
yle="width:35%; padding:12px 8px; font-weight:bold; color:#333; border-right:1px solid #eee;"> Package Info yle="width:65%; padding:12px 8px; color:#666;"> 9490*2195*1785mm 5000KG

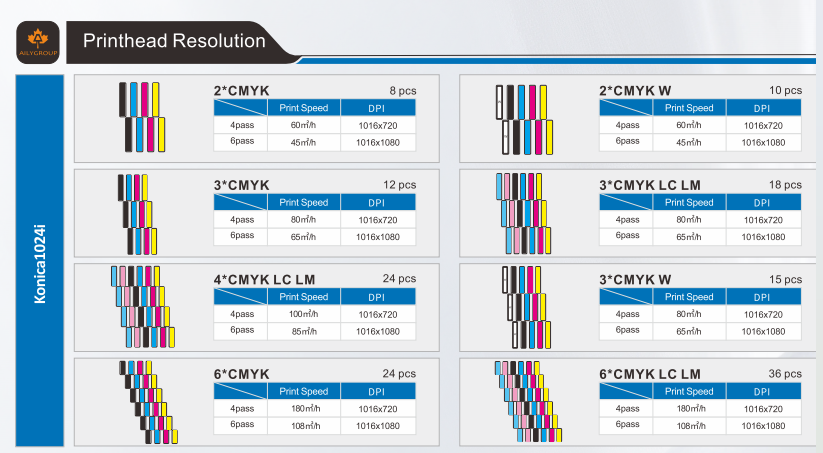

MJ-HD6600PRO Feature Imageyle="max-width:100%; margin:16px 0;" />
