Brief description of the product:
The MJ-UV2513 with its configuration of 3 to 16 Ricoh Gen5 or Gen6 printheads is positioned in the mid-to-high-end market. It combines excellent print quality with high production capacity making it the preferred equipment for professional advertising shops processing plants and decorative material manufacturers.
Core features of the product:
- 3-16pcs Ricoh Gen6/Gen5
- Advanced Magnetic Levitation Transmission Is Standard
- Anti-collusion Device
- Independent Constant Temperature Heating Control Ink Supply System
Detail images and application images:

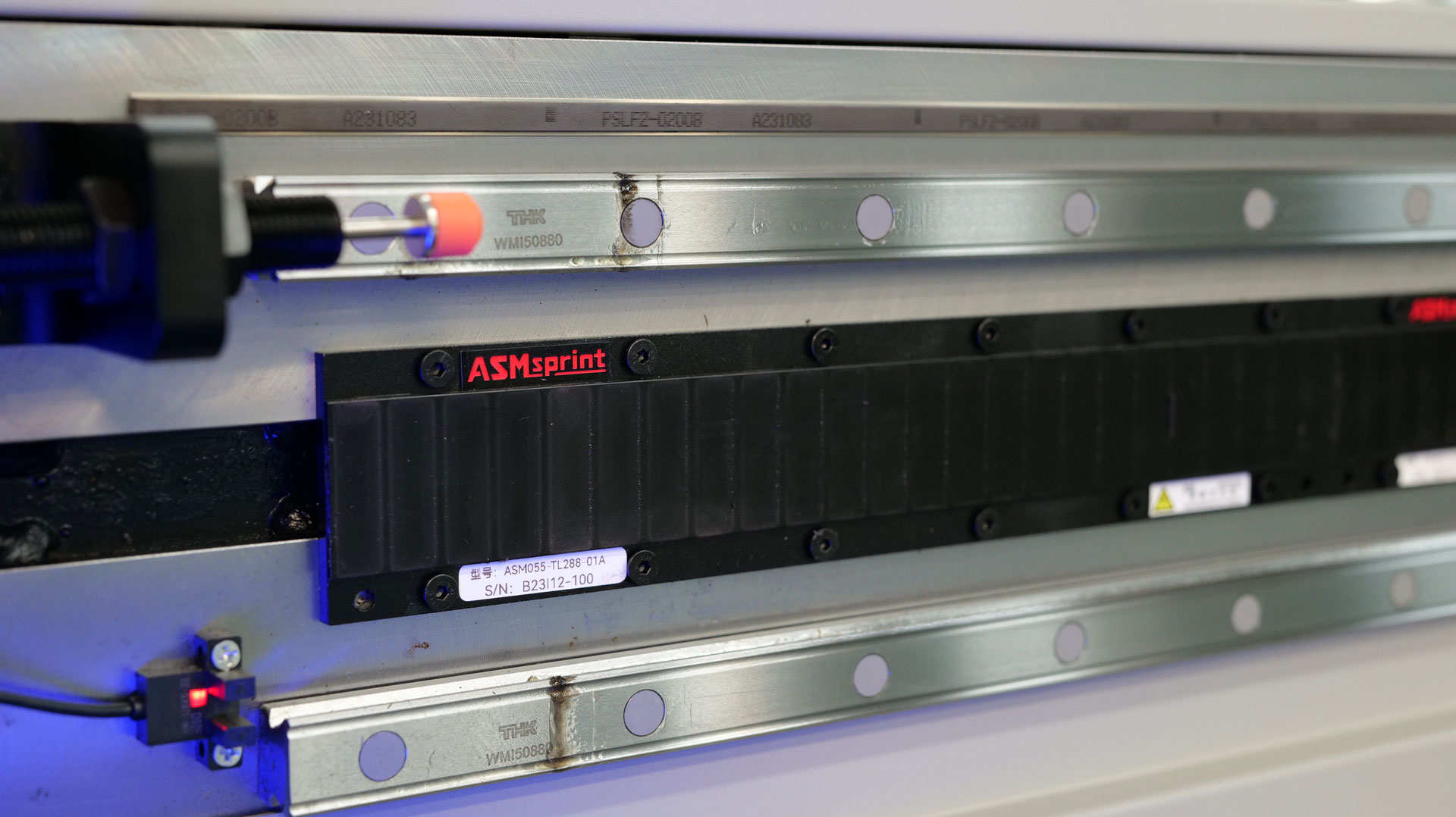

Advanced Magnetic Levitation Transmission Is Standard
The magnetic levitation system uses a grating ruler to provide real-time position feedback resulting in extremely high closed-loop control accuracy. This eliminates the "backlash error" or "vibration artifacts" associated with traditional mechanical transmissions ensuring sharp and clear images.

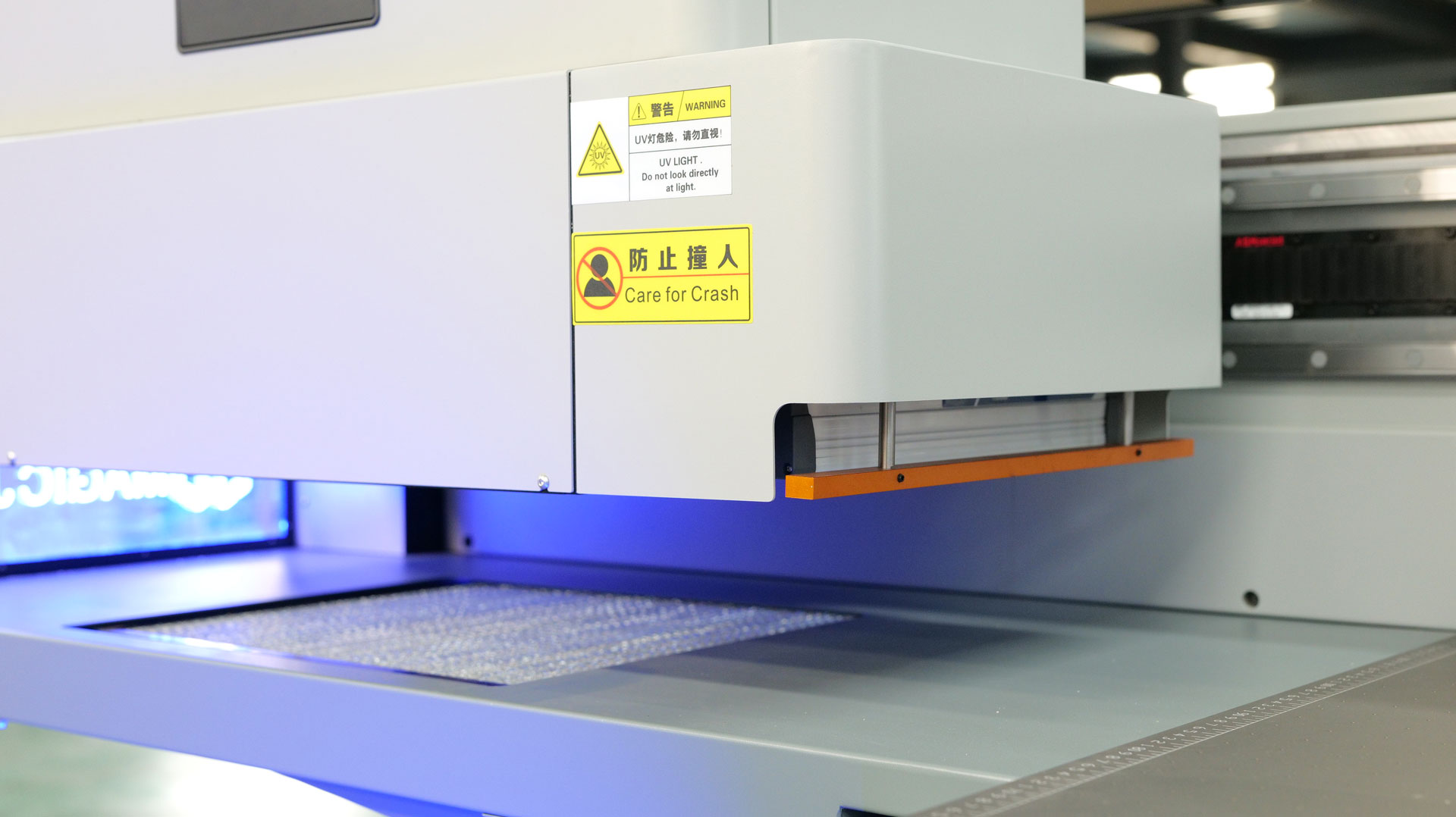

Auto Anti-Collision System To Avoid Damage
High-sensitivity automatic anti-collision device. Prevents hard collisions between the print head and the media.

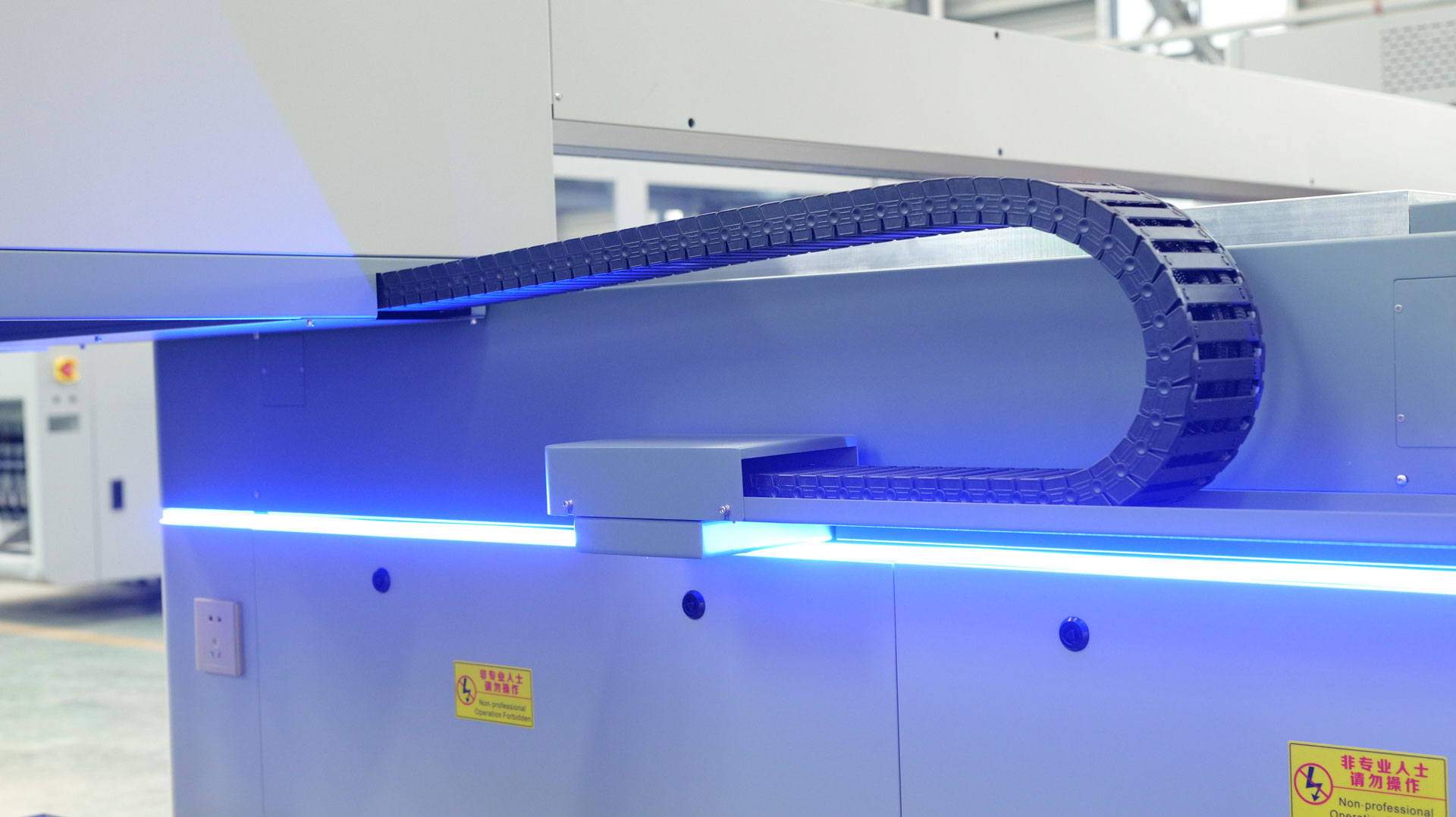

High Grade Imported Drag Chain Effectively Protect Ink Tube And Cables
This completely eliminates damage caused by friction between the wiring and the metal frame preventing short circuits due to cable insulation wear that could burn out the motherboard or print head.

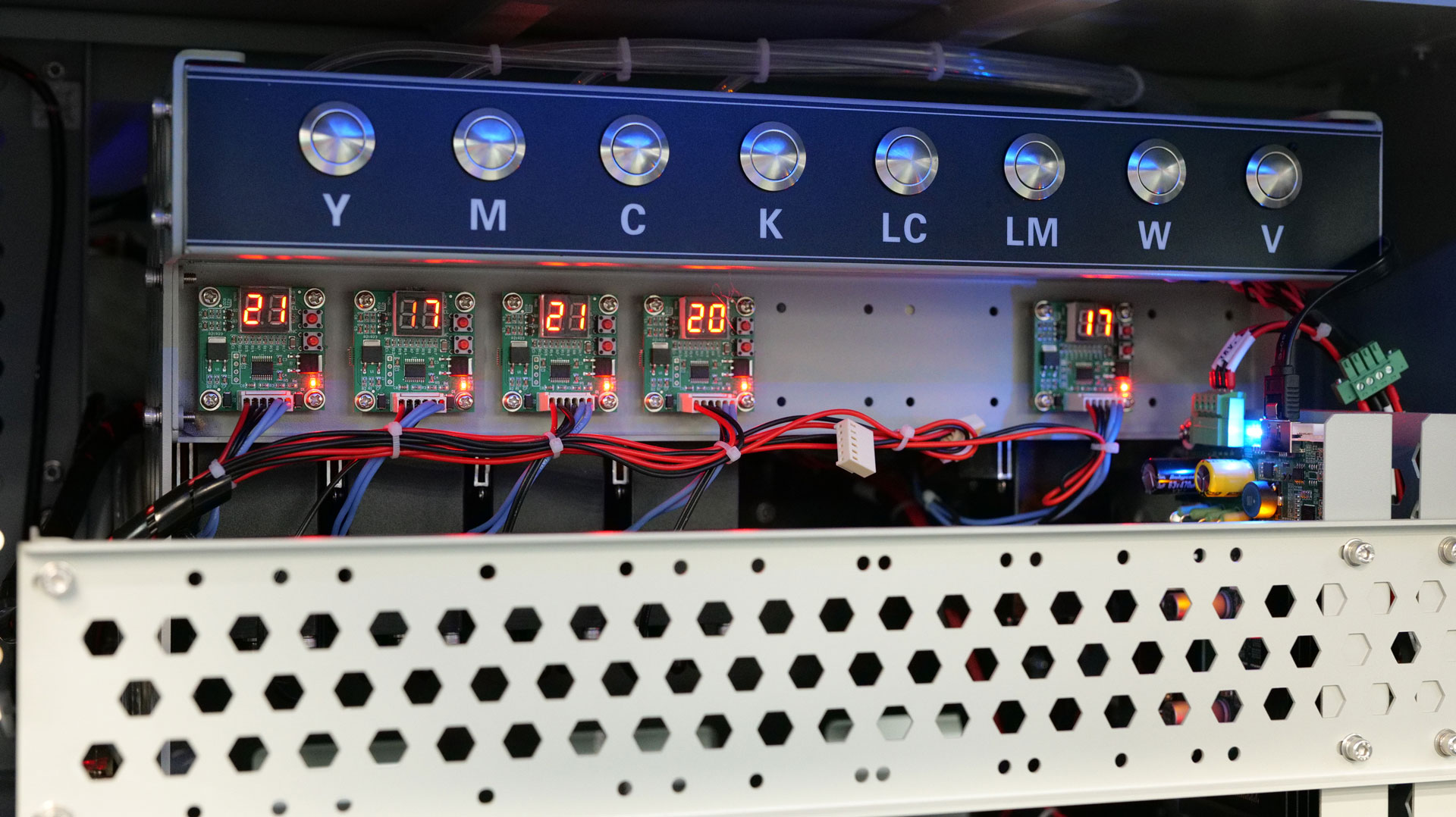

Independent Constant Temperature Heating Control Ink Supply System
It improves curing performance and color reproduction eliminating problems such as ink buildup dripping and incomplete drying caused by low temperatures and significantly reducing scrap costs.

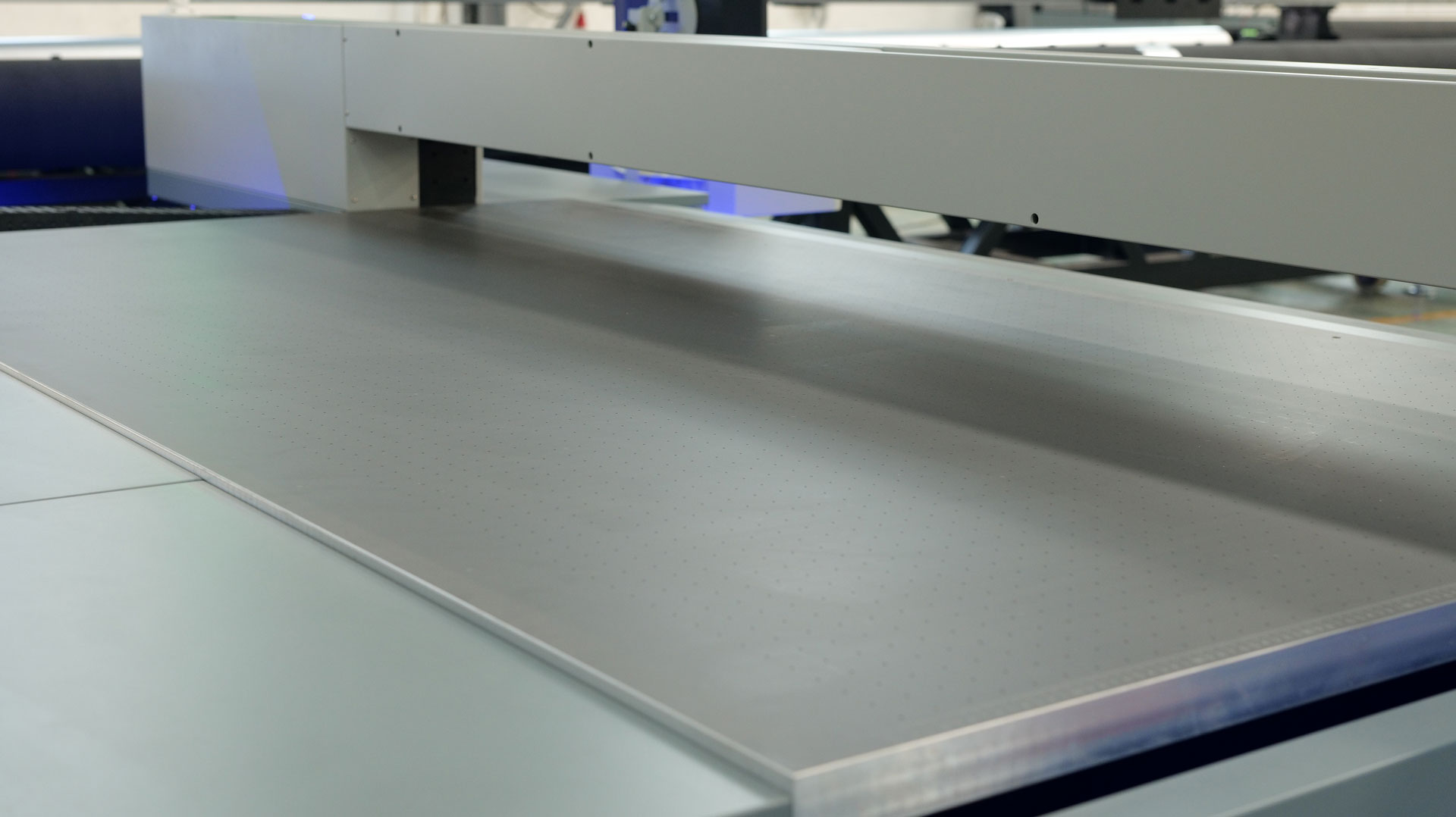

Oxidation Treated High Precision Platform
Regardless of the thickness of the material you are printing on the flat base ensures uniform and consistent image clarity.
| Print Software | Caldera/Phototprint |
| Printing Modes | Max 4 rows match all production need |
| Machine Functions | Lack ink alarm, Anti-collusion device, Independent Ink heating control, Neagtive ink supply, Print height sensor, 4 seperated suction area |
| Printing Heads | 3-16pcs Ricoh Gen5/Gen6 |
| Machine Configurations | Hiwin Guiderail, Leadshine Motor, BYHX Board, Germany imported tank chain, All-In-One Computer(optional) |
| All-In-One Computer Configurations | 8th Generations i7-8750H Processor, 64G/128G, 15.6-inch 1920x1080 Touch Screen |
| Print Colors | CMYK W V |
| Working Environment | 6000W Electricity Power, 25°C-30°C, humidity 50%-70% |
| Package Info | 4700*2300*1850mm, 1350KG |
