Brief description of the product:
The MJ-UV3220 configured with 3 to 16 Ricoh Gen5/Gen6 printheads is designed for high-end manufacturing companies large advertising processing plants and the home decoration industry that demand maximum productivity and extra-large format printing capabilities.
Core features of the product:
- 3-16pcs Ricoh Gen6/Gen5
- 8 Buttons Match 8 Separated suction Area To Ensure continous Printing Job
- Eye-Catching Uv Fluorescent Color Printing Solution
- Independent Constant Temperature Heating Control Ink Supply System
Detail images and application images:

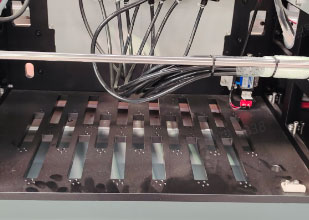

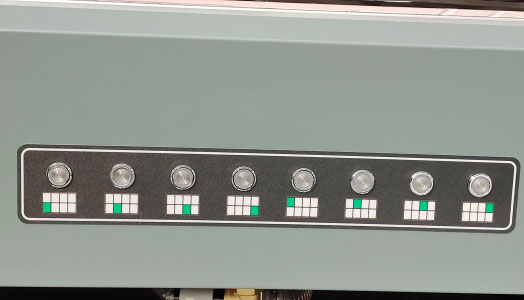

8 Buttons Match 8 Separated Suction Area To Ensure Continous Printing Job
Different areas can be turned on/off separately suitable for small-sized or special-shaped materials reducing energy consumption.

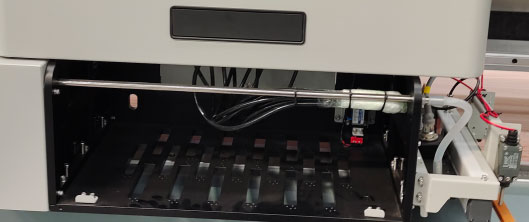

Automatic Powerful Waste Ink Wiper Built-In Capping Station
This ensures that the print heads are always in optimal working condition solving the "clogging" and "drying out" problems that are the biggest concerns in UV printing.
Built-In Media Alignment pins To guarantee High Precision Media Positioning.
This ensures that the printed pattern is perfectly parallel to the edges of the material eliminating the need for repeated measurements and adjustments.
Eye-Catching Uv Fluorescent Color Printing Solution
Clothing printing: fluorescent T-shirts sportswear (soft UV ink is required) Fashion shoe accessories: fluorescent painting on soles and uppers (friction resistance is required).

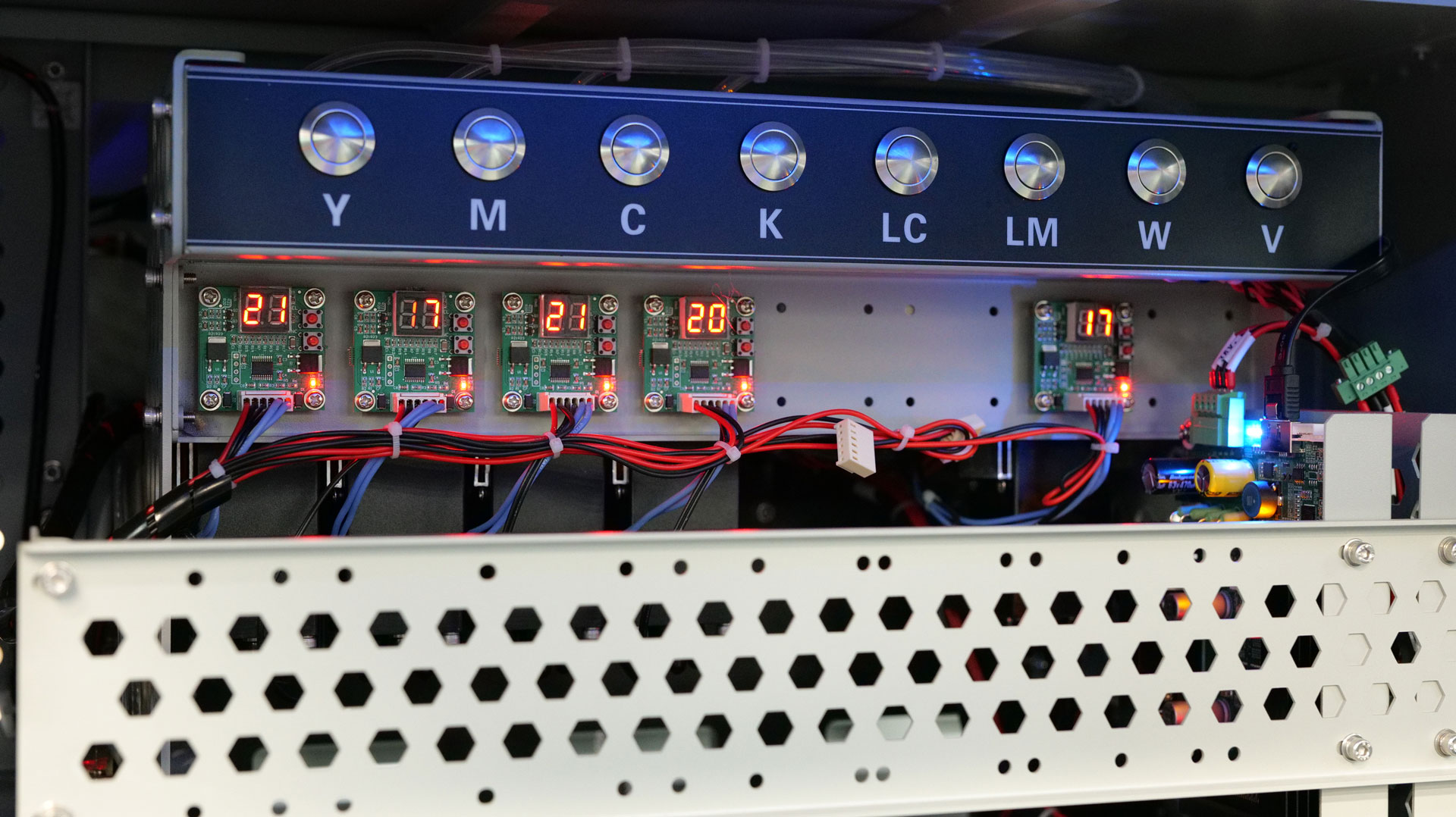

Independent Constant Temperature Heating Control Ink Supply System
It improves curing performance and color reproduction eliminating problems such as ink buildup dripping and incomplete drying caused by low temperatures and significantly reducing scrap costs.
| Print Software | Caldera/Phototprint |
| Printing Modes | Max 4 rows match all production need |
| Machine Functions | Lack ink alarm, Anti-collision device, Independent Ink heating control, Negative ink supply, Print height sensor, 8 separated suction area |

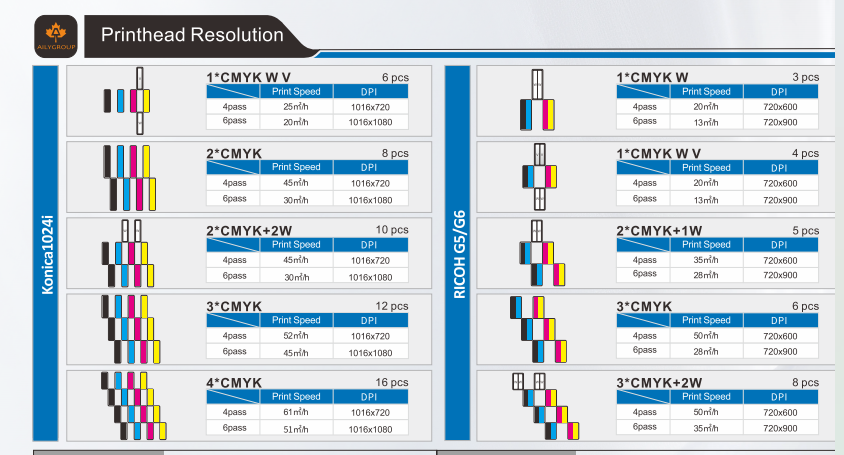

| Printing Heads | 3-16pcs Ricoh Gen5/Gen6 |
| Machine Configurations | Hiwin Guiderail, Leadshine Motor, BYHX Board, Germany imported tank chain, All-In-One Computer(optional) |
| All-In-One Computer Configurations | 8th Generation i7-8750H Processor, 64G/128G, 15.6-inch 1920x1080 Touch Screen |
| Print Colors | CMYK LC LM W V |
| Working Environment | 7000W Electricity Power, 20°C-28°C, humidity 40%-70% |
| Package Info | 5250*2300*2530mm, 2800KG |
